Atomic Force Microscopy (AFM)
Atomic Force Microscopy (AFM) is a high-resolution imaging technique that uses a nanoscale probe to physically scan the surface of a material. As the sharp tip moves across the sample, it measures surface forces, such as van der Waals, electrostatic, or mechanical interactionsto generate 3D topographical maps with sub-nanometer vertical resolution.
Unlike electron microscopy, AFM does not rely on electron beams or vacuum environments, making it ideal for non-conductive, soft, hydrated, or biological samples. AFM can operate in air, liquid, or controlled environments, enabling real-time evaluation of material surfaces, mechanical properties, and nanoscale interactions.
Use of Atomic Force Microscopy
AFM is used to analyze surface topography, nanomechanical properties, and materialโprobe interactions with unmatched spatial precision.
It enables researchers to:
- Visualize nanoscale textures, roughness, and surface defects
โข Measure mechanical properties such as stiffness, elasticity, and adhesion
โข Evaluate biomaterials, hydrogels, and polymers in hydrated or ambient conditions
โข Study nanoscale wear, friction, and tribology behavior
โข Analyze particle aggregation, nanostructures, and thin-film morphology
โข Assess cell surfaces, tissue scaffolds, and engineered biomaterials
Applications of AFM
AFM supports a broad range of R&D, product development, and quality-control workflows:
โข Polymers & Composites: nanoscale roughness, phase imaging, filler dispersion
โข Biomaterials & Hydrogels: elasticity, viscoelasticity, and surface interaction mapping
โข Nanomaterials & Thin Films: particle size, film uniformity, nano-pattern integrity
โข Medical Devices: surface modifications, coatings, wear analysis
โข Electronics & Photonics: micro-/nano-fabrication quality, feature height measurements
โข Cell & Biological Samples: membrane texture, adhesion forces, live-cell imaging (in fluid)
Sample Analysis Process
1. Sample Submission & Objective Review
- Client provides material description, imaging goals, and required resolution
โข We evaluate sample type (soft polymer, ceramic, biomaterial, nanomaterial, film, etc.)
2. Sample Preparation
Preparation depends on sample stiffness and imaging mode:
โข Mounting: attached to AFM disks using adhesive tabs or specialized fixtures
โข Cleaning: dust or particulates removed with appropriate gentle methods
โข Hydrated samples: placed in fluid cells for liquid imaging
โข Soft/biological samples: imaged at low forces to avoid deformation
3. AFM Imaging & Property Mapping
We perform the appropriate AFM mode depending on the material:
โข Contact mode: high-resolution topography for stiff materials
โข Tapping/Intermittent mode: ideal for soft samples; reduces surface damage
โข Phase imaging: maps compositional variations or filler domains
โข Forceโdistance curves: adhesion, elasticity, and modulus calculations
โข 3D surface profiling: height, roughness, and morphological quantification
4. Data Processing & Reporting

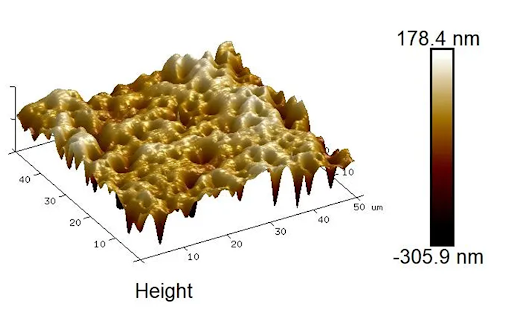

- 3D topography maps with scale bars and dimensional metadata
โข Roughness values (Ra, Rq, Rz) and phase contrast images
โข Mechanical property plots (adhesion, stiffness, elasticity)
โข Comprehensive, annotated report with interpretations aligned to your objectives
Why Choose Materials Metric for Your AFM Analysis
Materials Metric provides high-resolution AFM imaging and nanomechanical measurementssupported by our expert materials scientists. We ensure your data is scientifically accurate, publication-ready, and fully aligned with your R&D and product development goals.
Our AFM services include:
- 3D nanoscale topography imaging for polymers, biomaterials, thin films, and nanostructures
โข Mechanical property mapping (elastic modulus, adhesion, stiffness)
โข Phase, amplitude, and force-curve analysis for compositional and surface interaction studies
โข Imaging in air or liquid for biological and hydrated materials
โข Specialized handling for soft, tacky, or delicate samples
โข Clear, annotated reporting with quantitative metrics and expert interpretation
By combining AFM results with our SEM, spectroscopy, mechanical testing, and thermal analysis, Materials Metric helps you establish nanoscale structure, property relationships essential for product refinement and scientific understanding.
